PV-SIGMA Compact

Dynamic Pressure and Flow Regulation

The PV-SIGMA Compact system is a dynamic valve arrangement designed to regulate flow and differential pressure.

The PV-SIGMA Compact system can be installed in both domestic and commercial heating and cooling systems.

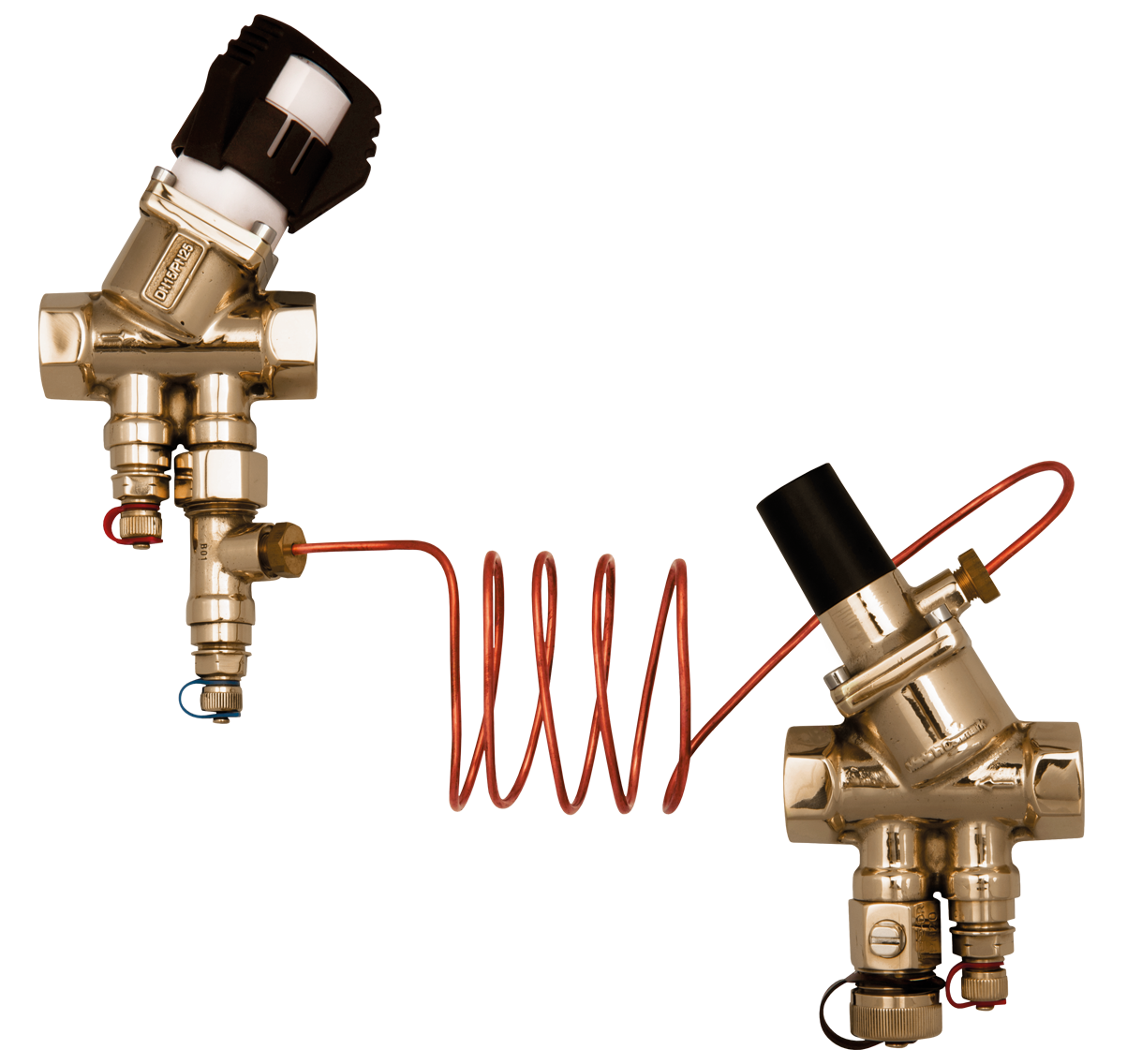

The PV-SIGMA Compact combines the Frese SIGMA Compact dynamic balancing valve positioned in the flow and the PV Compact differential pressure control valve positioned in the return.

The PV-SIGMA Compact system is designed to provide flow and differential pressure regulation under varying system conditions while simplifying commissioning.

The PV-SIGMA Compact system operates by limiting the flow and pressure in a system, helping to reduce noise associated with excess differential pressure.

Benefits

• Simple presetting of flow and differential pressure
• Flow and differential pressure can be adjusted independently of each other
• Differential pressure can be easily adjusted after installation
• Tamperproof presetting device fitted on the top of the differential pressure control valve
• Additional commissioning may be reduced or avoided if the system design is changed, depending on the application.
• Supports occupant comfort and energy-efficient system operation.
• The PV Compact helps reduce noise caused by high differential pressure whilst the SIGMA Compact limits the flow in a system, helping to prevent overflows.

Features

• Size range: DN15 to DN50
• Maximum flow: 10.3m3/h
• Maximum differential pressure 400kPa
• Setting ranges: 5kPa-30kPa, 20-60kPa and 20-80kPa
• Differential pressure regulation, flow regulation, drain and PT plugs as standard
• Isolation function on the SIGMA Compact
• Compact housings for easy installation
